Inicio /Productos/Impresora de inyección de tinta rotativa/Hotels High Precision A2 Flatbed UV Printer High Speed ​​UV Printer with Rotary Attachment for Glass Bottles Printing

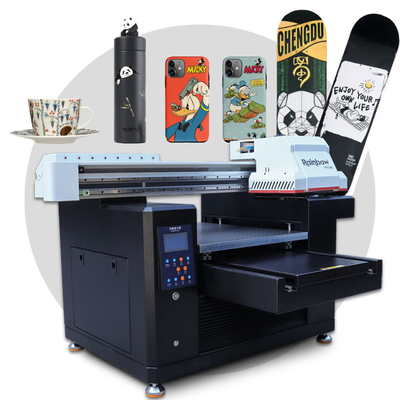

Hotels High Precision A2 Flatbed UV Printer High Speed ​​UV Printer with Rotary Attachment for Glass Bottles Printing

1 Set
MOQ
Hotels High Precision A2 Flatbed UV Printer High Speed ​​UV Printer with Rotary Attachment for Glass Bottles Printing
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Type: Inkjet Printer
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Condition: New
Plate Type: Flatbed Printer
Usage: Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer, uv flatbed printer
Automatic Grade: Automatic
Color & Page: Multicolor
Voltage: 110v-220v
Dimensions(L*W*H): 114*140*96cm
Weight: 110 KG
Warranty: 13 months
Print Dimension: 50*70cm
Ink Type: UV Curing Ink
Key Selling Points: High Productivity
Marketing Type: New Product 2022
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine, Other
key words: UV printing machine size A2 5070 for Food Beverage Shops
Resolution: 5760*2880DPI
Software: Well print/Maintop
Driving power: 110V-220V
Keyword: A2 size UV printing machine
Materials: pvc, metal, wood, plastic, silicone, leather, acrylic
Languages: Chinese/ English
Printing method: Drop-on-Demand piezo electric inkjet
Ink supply: 500ml /bottle
printhead: Double DX8 heads (CMYK+W)
Información básica
Pago y Envío Términos
Packaging Details: Package: 1. Outside package: international standard export wooden cases. 2. Inner package: Stertch film
Descripción de producto
 Specs of Rainbow Nano 7 UV flatbed printer
Name
Rainbow Nano 7 A2+ digital uv printer
Working Environment
10 ~ 35 ℃ HR40-60%
Machine Type
Automatic Flatbed UV digital printer
Automatic Flatbed UV digital printer
Three print Heads












Features
· The UV light source can be adjusted
RIP Software
UltraPrint,printDream
· Auto height measurement
Operation System
All Microsoft Windows system
. Power auto flash clean
Interface
USB2.0/3.0 Port
·Print on most material directly
Languages
English/Chinese
· Full-aluminum rotary device with independent motor brings high printing resolution.
Ink Type
UV LED curing ink
· Dual Hi-Win Linear guideways in X-axis, longer lifespan and more accurate positioning.
Ink System
CISS Built Inside With Ink Bottle
·4 units of thick ball screws renders precise, swift, smooth and silent vertical movement of the flatbed.
Ink Supply
500ml/Bottle
· Auto printhead lock sliding lever, automatic cleaning, moisturizing, which prolongs the life of the print head significantly.
Height Adjustment
Automatic with Sensor.
· Smart LED touch screen renders easy platform control.
Driving Power
Automatic with Sensor.
· High quality mute Germany Igus cable carrier protects the ink tu- be and data cable.
Power Consumption
500W
Materials to Print
· Metal, Plastic, glass, wood,Acrylic, Ceramics,PVC,Steel board,Paper,
Media Feeding System
Auto/Manual
·TPU, Leather, Canvas, etc
Ink Consumption
9-15ml/SQM.
UV Curing System
Fan  Cooling
Print Quality
720×720dpi/720*1080DPI（6/8/12/16pass）
Printing Method
Drop-on-demand Piezo Electric Inkjet
Machine Dimension
100*127*80cm
Printing Direction
Smart Bi-directional Printing Mode
Packing Size
114x140x96CM
Printing Speed
About 3minutes for 720*720dpi, 500mm*700mm size
Machine Net Weight
110kg
Max. Print Gap
24cm
Gross.Weight
150kg
Power Requirement
50/60HZ 220V(±10%)<5A
Packing Way
Wooden Case

Detailed images

Nano 7 uses 4 pieces Hiwin brand accurate linear guide rail with long lifespan.

Hiwin brand linear guide rail ensured the smooth and silence working of the print head up and down, flatbed move forth and back.


Dual Guideways:Dual Hi-Win Linear guideways in X-axis, longer lifespan and more accurate positioning.
Ball Screw:Equipped with ball screw guides on Y-axis and four pieces Hi-Win Linear guideways on Z-axis, highest configuration ever on A1 machine.

Touch Panel:Smart LED touch screen renders easy platform control.

Slider Lock:Auto printhead lock sliding lever, automatic cleaning, moisturizing, which prolongs the life of the pri -nt head significantly.

Lgus Cable Carrier:High quality mute Germany Igus cable carrier protects the ink tu- be and data cable.

Rotary Support:Full-aluminum rotary device with independent motor brings high printing resolution.
FAQ:
Q1:What materials can UV printer print?
A:UV printer can print almost all kinds materials, such as phone case, leather,wood,plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc.
Q2:Can UV printer print embossing 3D effect?
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos
Q3:Can A3 uv flatbed printer do rotary bottle and mug printing?
A:Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4:Does printing materials must be sprayed a pre-coating?
A:Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.
Q5:How can we start to use the printer?
A:We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.
Q6:What about the warranty?
A:We have 13 months warranty and lifelong technical support, not include consumables like print head and ink
dampers.
Q7:What's the printing cost?
A:Usually,1 square meter need cost about $1 printing cost with our good quality ink.
Q8:Where can I buy the spare parts and inks?
A:All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.
Q9:What about maintenance of the printer?
A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet. If you don't use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.
